Product

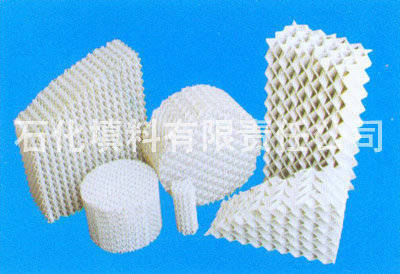

Ceramic Structured Packings

[ Products Description ]
The Ceramic structured packing has the advantages of a higher surface area, flux, less resistance, higher efficiency, corrosion resistance and high-temperature resistance (up to 1000°C or above). It is flexible in operation and without amplification effect in a large tower, and particularly suitable for the rectification and absorption of corrosive mixture on the occasion of strict requirements of pressure drop and number of theoretical plates.

[ Physical & Chemical properties ]
Acid resistance: ≥99.8%
Thermal resistance: ≥1000°C
Mohs' hardness scal: ≥7
Crushing strength: ≥2.0Mpa



[ Characteristic Indexes of Ceramic Structured Packings ]
Type Surface area
m2/m3
Void
space %
Bulk density
kg/m3
Wave height
mm
Wave
span mm
Thickeness
mm
Nt
m-1
Max.F-factor
m/s.(kg/m3)0.5
ΔP
Pa/m
450 450 75 520-550 6.0±0.5 12±0.5 1.0-1.3 3-4 1.8-2.0 200-250
400 400 76 500-520 7.0±0.5 14±0.5 1.0-1.3 2.8-3.2 2.0-2.2 180-260
350 350 78 480-520 8.0±0.5 16±0.5 1.2-1.5 2.5-2.8 2.2-2.6 200-260
250 250 82 420-450 11.0±0.5 22±0.5 1.2-1.5 2.3-2.5 2.6-2.8 220-280
160 160 86 350-380 17.0±0.5 34±0.5 1.5-2.0 1.8-2.0 2.8-3.0 250-300
125 125 87 300-350 23.0±0.5 42±0.5 2.0-2.5 1.5-1.8 3.0-3.2 280-350
100 100 90 220-250 30.0±0.5 50±0.5 2.0-2.5 1 3.5 250-300
The ceramic structured packing has the types of 100-750X/Y, X and Y respectivaely represents the wave angle are 30°, 45°, and the number means the value of surface. The diameter can be manufactured in 100-8000mm, if upon request, it can also be designed and manufactured to meet the need of specific applications.
